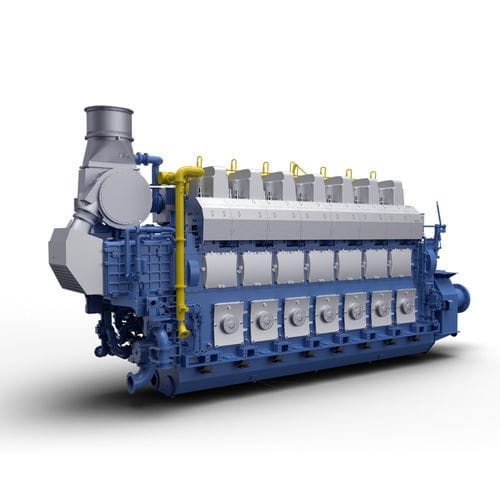

Dual-fuel engine H54DF seriesdieselgasmulti-cylinder
Add to favorites
Compare this product
Characteristics
- Type
- diesel, gas
- Number of cylinders
- multi-cylinder
- Product applications
- for generator sets, marine
- Emissions level
- Tier 3, Tier 2
- Other characteristics
- 4-stroke, dual-fuel, Miller cycle
- Power
Min.: 8,820 kW
(11,991.859 hp)Max.: 13,230 kW
(17,987.788 hp)- Rotational speed
600 rpm
(3,769.91 rad.min-1)- Weight
Min.: 143 t
(157.63 us ton)Max.: 248 t
(273.37 us ton)- Length
Min.: 14,042 mm
(552.8 in)Max.: 17,067 mm
(671.9 in)- Width
2,100 mm
(82.7 in)- Height
5,563 mm, 5,761 mm
(219 in, 226.8 in)
Description
Bore
540 mm
Stroke
600 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.5 g/kWh
