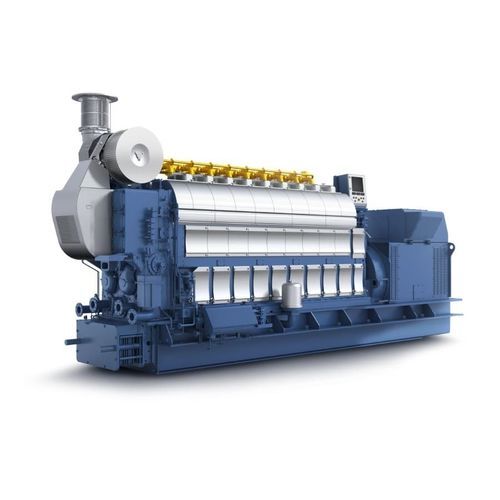

Dual-fuel engine H54DFV seriesdieselgasmulti-cylinder
Add to favorites
Compare this product
Characteristics
- Type
- diesel, gas
- Number of cylinders
- multi-cylinder
- Product applications
- for generator sets, marine
- Emissions level
- Tier 3, Tier 2
- Other characteristics
- 4-stroke, dual-fuel, Miller cycle
- Power
Max.: 26,460 kW
(35,975.576 hp)Min.: 17,111 kW
(23,264.478 hp)- Rotational speed
600 rpm
(3,769.91 rad.min-1)- Weight
Max.: 536.3 t
(591.17 us ton)Min.: 300.9 t
(331.69 us ton)- Length
16,936 mm, 18,038 mm, 19,648 mm, 20,968 mm
(666.8 in, 710.2 in, 773.5 in, 825.5 in)- Width
5,750 mm
(226.4 in)- Height
7,717 mm, 8,013 mm
(303.8 in, 315.5 in)
Description
Bore
540 mm
Stroke
600 mm
Specific Lubricating Oil Consumption
Lub. Oil: 0.5 g/kWh
Catalogs
Other Hyundai Heavy Industries-Marine Engine products
4-Stroke Engine
