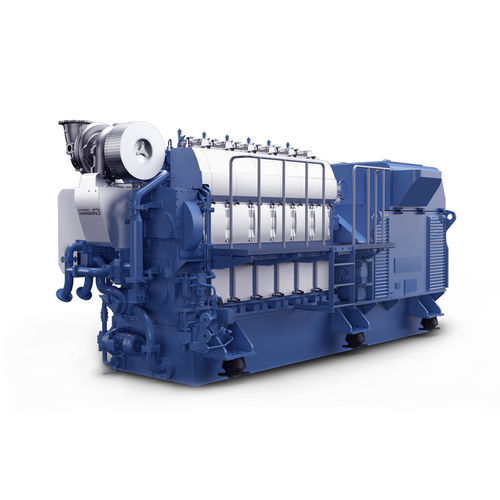

Diesel engine 6H21M6-cylinderfor generator setsmarine
Add to favorites
Compare this product
Characteristics
- Type
- diesel
- Number of cylinders
- 6-cylinder
- Product applications
- for generator sets, marine
- Emissions level
- Tier 3, Tier 2
- Other characteristics
- 4-stroke
- Power
Max.: 1,200 kW
(1,631.545 hp)Min.: 800 kW
(1,087.697 hp)- Rotational speed
720 rpm, 900 rpm
(4,523.89 rad.min-1, 5,654.87 rad.min-1)- Weight
11.6 t, 20 t
(12.79 us ton, 22.05 us ton)- Length
5,487 mm
(216 in)- Width
1,400 mm
(55.1 in)- Height
2,427 mm
(95.6 in)
Description
Bore
210 mm
Stroke
320 mm
Specific Lubricating Oil Consumption
SOLC : 0.5g/kWh
- Tolerance : +25% depending on the operating conditions
- Only MCR should be used to evaluate the lubricating oil consumption
