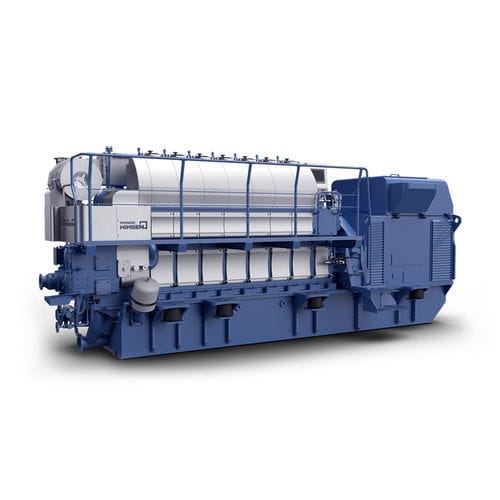

Diesel engine H21C seriesgasolinemulti-cylinderfor generator sets
Add to favorites
Compare this product
Characteristics
- Type
- diesel, gasoline
- Number of cylinders
- multi-cylinder
- Product applications
- for generator sets, power plant
- Other characteristics
- 4-stroke
- Power
Min.: 1,128 kW
(1,533.653 hp)Max.: 2,160 kW
(2,936.782 hp)- Rotational speed
900 rpm, 1,000 rpm
(5,654.87 rad.min-1, 6,283.19 rad.min-1)- Weight
Min.: 14.3 t
(15.76 us ton)Max.: 33.6 t
(37.04 us ton)- Length
5,984 mm, 6,334 mm, 6,740 mm, 7,090 mm, 7,585 mm
(235.6 in, 249.4 in, 265.4 in, 279.1 in, 298.6 in)- Width
1,610 mm
(63.4 in)- Height
2,600 mm, 2,653 mm
(102.4 in, 104.4 in)
Description
Steady Performance
One of the major important factors of an engine is its consistancy in performance. HiMSEN engine's professional engineering can assure stable power output even after many years.
Easy Maintenance
HYUNDAI engines are thoughtfully modularized for easy maintenance. Many O&M managers working on HYUNDAI’s power plant comment that the intuitive and stable engine design makes the site easier to be operated. Also, the pipeless design can prevent deformations.
Eco-friendly
HiMSEN engines have been designed with the environmental issues in mind. HYUNDAI always looks for various ways to protect the environment. Low NOx emissions / Smokeless at whole operation range / Low vibration & noise.
Bore
210 mm
Stroke
330 mm
Catalogs
HYUNDAY HiMSEN ENGINE
83 Pages
