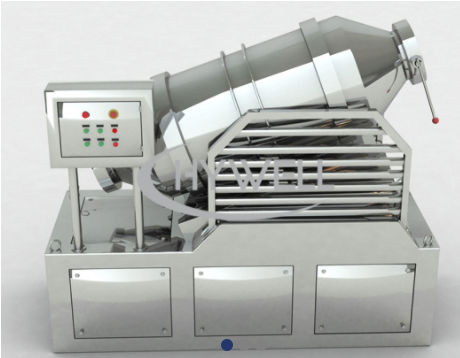

Batch mixer EYH

powdervacuumcompact

Principle Two Dimensions Mixer mainly consists of three big parts. rotating barrel, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two wheels，Two of four wheels are driven by rotating system to make the barrel rotate. The swinging rack is driven by a set of crand shaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame. The rotating barrel of Two Dimensions Mixer can make two motions at the same time. One is the rotation of the barrel and the other is swinging of the barrel along the swinging rack. Materials to be mixed will be rotated when the barrel is rotating, and will be mixed from left to right and vice versa when the cylinder is swinging. As the result of these two motions, materials can be mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials. Features 1. Control system has more choices, such as push button, HMI+PLC and so on 2．The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on. 3.The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% , and the volume charge factor is 0.6. 4. Smooth running, reliable performance, easy operation. 5. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP. 6. Machine materials : AISISUS304 , AISISUS316L, and other material .
