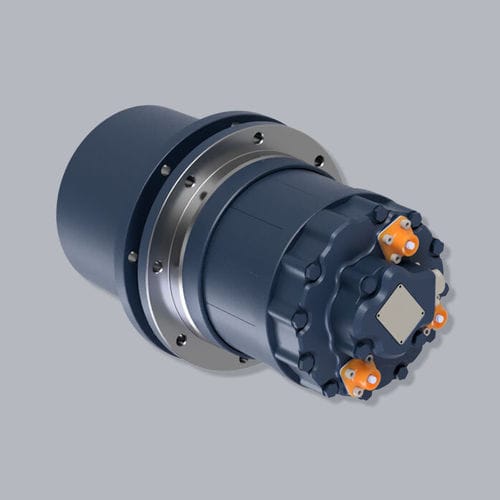

DC gear-motor M160 Seriespermanent magnetsynchronousplanetary
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet, synchronous
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Voltage
- 24 V, 48 V
- Torque
- 1 - 2 kNm, 2 - 5 kNm
- Mounting
- flange-mounted
- Product applications
- for the food industry, for agricultural applications, for caterpillar tracks
- Other characteristics
- miniature
- Gear ratio
22.6 unit, 42.7 unit, 83.5 unit
- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 25 °C
(77 °F)
Description
M160 Series
Small final drives
Our smallest final drive, the M160 model is well-suited for tracked carriers, smaller crawler, food harvester machines and mini-excavators up to a flange load of 1 ton. Available with speed up to 130 rpm
KEY FEATURES
• Total length L = 295mm
• With or without integrated multi-disc brake
• Gear ratios 22.6, 42.7, 83.5
Catalogs
M160i3 (48V/96V)
4 Pages
