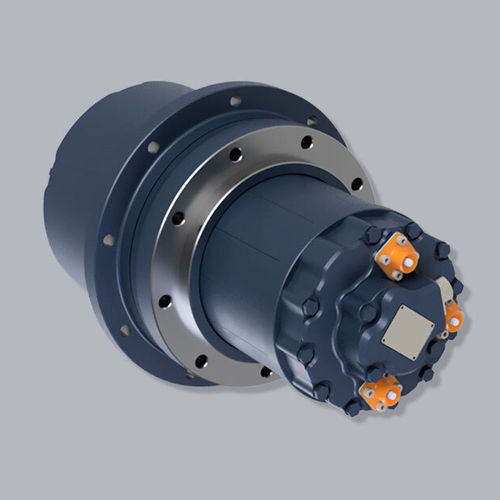

DC gear-motor M200 Seriespermanent magnetsynchronousplanetary
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet, synchronous
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Voltage
- 400 V
- Torque
- 2 - 5 kNm
- Mounting
- flange-mounted
- Performance
- high-torque
- Product applications
- for the food industry, for machines, for agricultural applications, for caterpillar tracks
- Other characteristics
- compact
- Gear ratio
Max.: 50.2 unit
Min.: 34 unit
- Operating temperature
Max.: 25 °C
(77 °F)Min.: -20 °C
(-4 °F)
Description
M200 Series
Medium sized, high torque final drives
The M200 model is a compact drive with high torque and fail-safe parking brake and flange load capabilities of 2 tons. It is well-suited for vegetable and fruit harvester robots, high torque crawlers, tracked carriers and other mining and indoor logistic applications.
KEY FEATURES
• Total length L = 371mm
• With or without integrated multi-disc brake
• Gear ratios 34 – 50.2
Catalogs
No catalogs are available for this product.
See all of I&W Electric Drive Systems‘s catalogs
