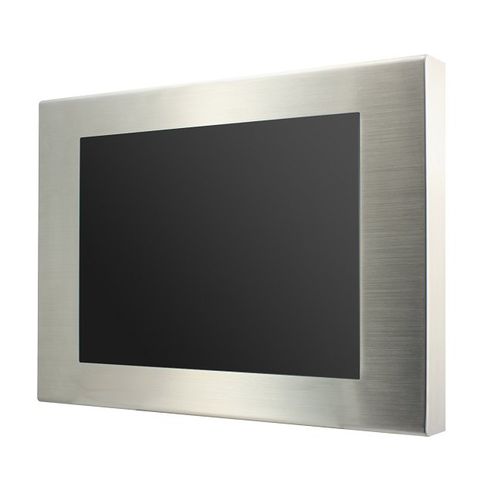

LCD panel PC INOSP-151-RE
resistive touch screen15"1024 x 768

LCD panel PC
LCD panel PC
LCD panel PC
LCD panel PC
Add to favorites
Compare this product


Characteristics

Screen type
LCD, resistive touch screen
Display size
15"
Resolution
1024 x 768
Processor
Intel® Atom D2550
Construction
fanless, stainless steel frames
Applications
industrial
Protection level
IP65, waterproof

Description

The INOSP-151-RE is a 15" stainless steel panel PC that utilizes the dual-core 1.86GHz Intel® Atom™ Processor D2550 and Intel® NM10 chipset providing high computing performance and low power consumption. The fanless INOSP-151-RE operates silently and reliably in harsh environments. It comes with two SODIMM slots to accommodate up to 4GB of DDR3 1033/1066MHz system memory and one 2.5" SATA HDD and external CFast slot for data storage. For M2M communications, it is provided with two Gigabit Ethernet, an isolated RS-232/422/485 port, as well as an overload protected 2-in/2-out GPIO feature. The unit is equipped with 5-side IP65 protection. The optional IP65 compliant I/O cover has special M12 waterproof connectors and cables and is available in backward or downward orientation depending on the need of the customer. The INOSP-151-RE has been proven to work well in environments with temperature ranging from 0 to 50 degrees Celsius and supports a wide range 12V~36V DC power input with optional 24V DC IP56 stainless steel power adaptor, which makes it ideal for food, livestock, chemical, mining, petro and factory automation or any other industrial applications.
