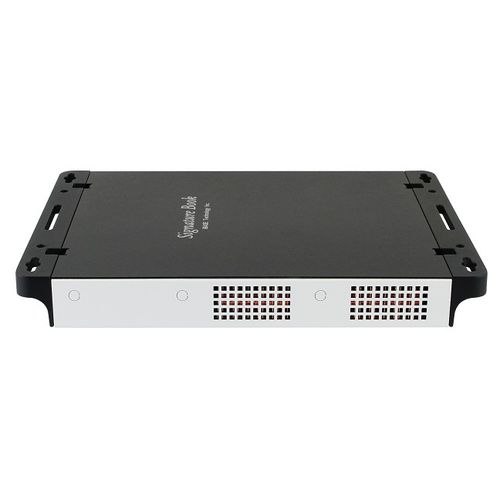

Embedded computer SI-304

4GRJ45USB 2.0

SI-304 is a four (4) HDMI output digital signage player that supports up to 4096 x 2160 4K resolution for every display channel. SI-304 is not only ideal for 2x2 video walls, but also suitable for menu boards in restaurants, as well as in electronic displays in banks, airports and shopping malls, to convey dynamic information and targeted promotions. SI-304 is powered by a 2nd Generation AMD Embedded R-Series accelerated processing unit (APU) with AMD Radeon™ HD 9000 graphics to deliver breakthrough graphics performance and power efficiency. It has rich I/O connectivity with 2x USB 3.0, 1x USB 2.0, and 3x RJ45 for 2x Gigabit LAN and 1x RS232, with expansion features via 2x mPCIe and 1x UIM/SIM card slot for WiFi, Bluetooth or 4G/LTE functions. In addition, the player is built with hardware EDID emulation, a feature that allows system setup with a variety of screen configuration, power and signals, to troubleshoot itself without the need of resetting the unit when there is a problem. SI-304 is designed with a segregated ventilation to keep contaminants out and enhance system stability. It also supports AMD Eyefinity™ Technology that allows users to easily configure multiple display configuration. Measuring 269mm by 193mm by 29.5mm, this compact player is available with DDR3 SO-DIMM 2133 memory of up to 32GB, M.2 64GB Solid State Drive (SSD), and a 150W power adaptor.
