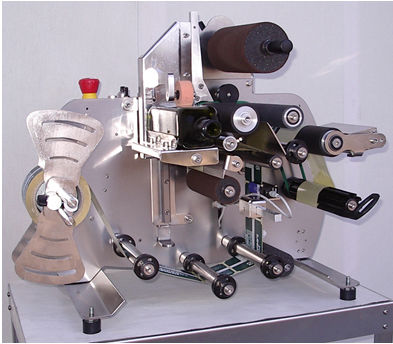

Semi-automatic labelling machine

for bottlesfor self-adhesive labels

Table top Semi-automatic labelling machines suitable for self-adhesive labels. Accessories available to work both round and square containers. Can apply both front and back labels. These machines can be supplied with pneumatic hot stampers or hot foil lot coding units. Semi-automatic single reel bench top labelling machines for round bottles, conicals, (max conicity 1°) and square bottles (as marasca for example) with the installation of the related accessory. Application of front and back label on round bottles from the same reel on a single cycle. Application of front and back label on square bottles on two cycles by turning the bottle of 180°. Also recommended for containers having a low mechanical resistance to pressure (i.e. plastic as PET, PE, PVC and so on). Datalogic fork photocell with a 50 mm slot and teach in button. 170 mm paper passage (standard), tall rollers up 220 mm as an optional The great advantage of this machine is the capability of labelling round and square bottles (with the related accessory) without the need of mounting / dismounting mechanical parts. It is sufficient to follow the correct paper path according to the required application and make some simple adjustment in compliance to the bottle format and the label(s) size. Productivity: about 600 bph (round bottles – front and back).
