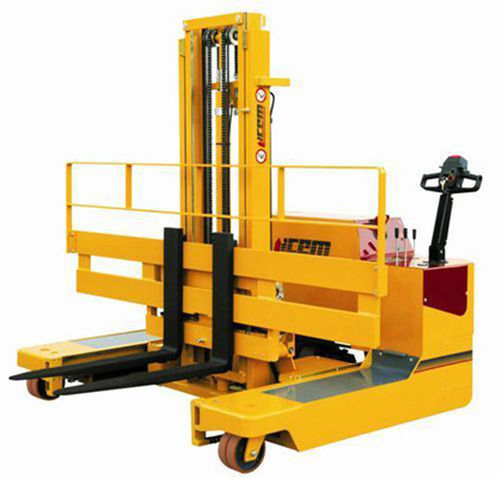

Electric stacker truck CROSS series

walk-behind4-way

ELECTRIC LIFTING STACKER WITH TILLER, 4 DRIVING DIRECTIONS WITH RIDE-ON STANDING OPERATOR AND RETRACTABLE MAST •Retractable mast for Gasy picking and placement •4 driving directions to operate in tight spaces with loads up to 7 metres long •Ergonomic control head suitable for operation with both hands •Power-assisted steering on the tiller •High residual capacity, with lifting up to a height of 6,200 mm •Powerful, highly energy-efficient drive motor •Compact chassis for manoeuvring in tight spaces •Multifunctional display CROSS Series Technology and advantages The CROSS model, built to have 1.600 and 2,000 kg capacities, is characterised by a 4-driving-directions feature, suitable for manoeuvring in tight spaces with loads up to 7 metres long and up to 1500 mm wide. The retractable mast, with its 870 up to 1270 mm folding stroke, is designed to help ground-level load picking and placement without any sideways manoeuvring. The advantage is that, once the load is on the forks, the main handling direction is along the longitudinal axis, resulting in minimised footprint even with loads of considerable lengths. The hydraulic control of one of the load-bearing wheels enables the machine sideways movement.
