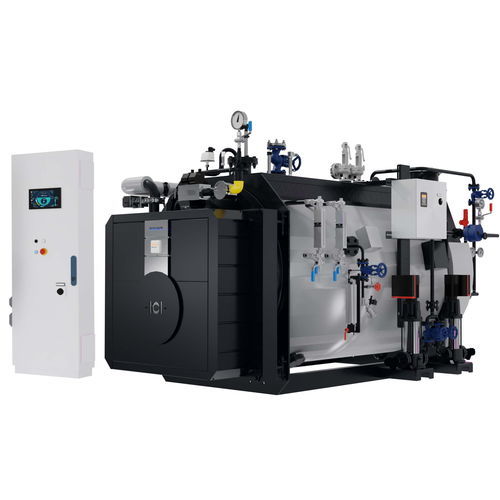

Vacuum evaporator ECOVAPOR ECS72

process

Integrated system for steam production: ECOVAPOR ECS72 consists of a series of equipment, assembled and electrically and hydraulically tested at our facility, aimed at ensuring the operation without a continuous supervision by a qualified operator for 72 hours. STANDARD EQUIPMENT Accessories on the steam side, including: Steam outlet globe valve spring safety valve (no.2 standard valves only for Ecovapor 2500 model) level indicator with direct reflection shut-off valve groups and drain indicator Integrated economiser consisting of: 2 check thermometers 1 pressure gauge with three-way test valve safety valve Gruppo alimentazione acqua montato su basamento caldaia composto da : 1 vertical multi-stage centrifugal pump suitable for 120° C water with integrated inverter 1 shut-off globe valve 1 pump suction filter 2 non-return valves Adjustment and control system allowing: Water level adjustment which depends on the actual steam request from the system Thermal power adjustment which depends on the actual steam request from the system Burner modulation adjustment, for the management of any power between the minimum and maximum limits, for an optimal adaptation to the feed instant request Adjustment of frequency and duration of automatic blowdown Entry thresholds adjustment depending on the salinity control unit TDS Dynamic programming of the boiler operating pressure set-point Automatic blow down system unit containing: globe valve rapid opening drain ball valve, with steel body, pneumatic actuator and return spring equipped with compressed air solenoid valve
