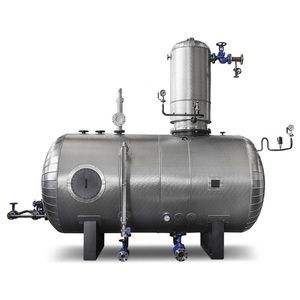

Stainless steel deaerator DEG/P series

The DEG P pressurised thermophysical deaerator collects the treated make-up water deliverd by a suitable treatment system. The make-up water is controlled by a pneumatic, modulating 2-way valve that receives the signal from the level regulator/indicator positioned on the horizontal tank. The water is atomized at the top of the degassing tower and falls into circular plates suitably perforated through which the heating steam passes. On the top part of the turret there is also a fitting for possible system condensate returns and a manual oxygen blowdown valve. This appliance has a design pressure of 0.5 bar and therefore it is not subject to the provisions of the PED Directive 2014/68/EU. Provided with: - vertical degassing turret, manufactured from C steel (stainless steel AISI 304 version also available) flanged to the lower reservoir with stainless steel AISI 304 jagged internal plates - sheet steel support saddles able to ensure unit support - insulating coating with high density mineral wool and aluminium sheet finish Data concerning the feed water in the deaerator: - Inlet water pressure: 1 + 3 bar - Temperatura dell’acqua in ingresso: 10 + 35 °C Standard equipment: Steam regulation unit to maintain the temperature (105°C) in the storage tank including: steam regulation modulating valve of the automatic or pneumatic type by-pass and shut-off valves steam filter appropriate steam injectors temperature probe Steam regulation unit to maintain the correct pressure value (0.2-0.4 bar) in the degassing turret including: steam regulation modulating valve of the automatic or pneumatic type by-pass and shut-off valves steam filter appropriate steam injectors
