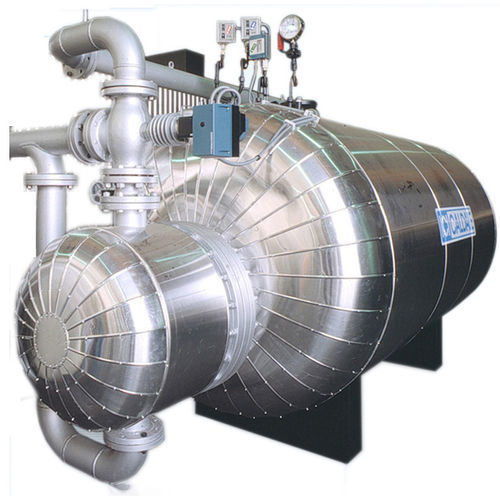

Steam boiler EVX series

electrichorizontalvertical

The EVX-series steam boilers are horizontal semi-fixed boilers provided with an exchange coil containing a primary fluid such as thermal oil or super-heated water, complete with regulation and safety accessories. Provided with: - sheet steel support saddles and section bar support base. - insulating coating with high density mineral wool and aluminium sheet finish. Standard equipment: Steam-side accessory unit including: Steam outlet/crown valve 2 spring safety valves 2 reflex level indicator gauges 2 indicator drain and shut-off valve units Pressure monitoring instrumentation manifold including: Large dial 3 way test valve manometer Limit pressure switch Manual reset safety pressure switch Automatic conductivity probe level regulator including: Pump start probe Pump stop probe Probe for low level Blowdown unit including: Purge shut-off valve Quick exhaust valve with manual lever Feed water unit mounted on support including: 1 vertical multistage centrifugal pumps suitable for 120°C water 1 shut-off globe valve 1 pump suction filter 2 non-return valves Boiler control panel, IP 55 400V/3 +N/ 50Hz
