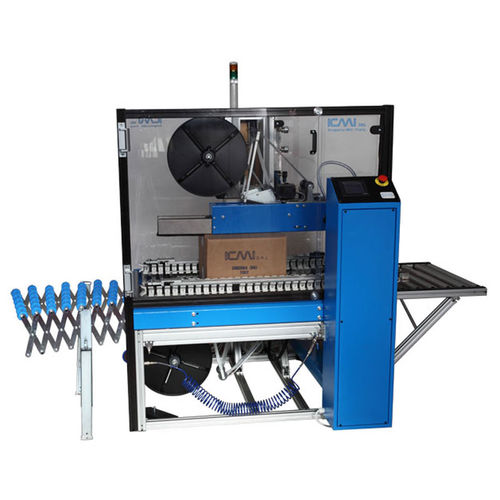

Multi-flap case sealer CG 50 / G

adhesive tapegummed paper

ICMI INTRODUCES THE NEW CG 50/G TAPING MACHINE Sealing boxes with gummed paper is easier than ever: maximum versatility in minimum space. PRACTICAL Touch-screen control panel for immediate reading VERSATILE Handles American-type boxes from 150x120xH120 mm to 600x500xH500 mm up to 30 kg of weight IMMEDIATE AND USER-FRIENDLY Built-in diagnostic system in the touch-screen panel ROBUST AND SAFE Aluminium frame and polycarbonate protections; easy and fast maintenance TECHNICAL SUPPORT Technical Call Centre and Emergency Service CUSTOMIZABLE Each CG 50/G can be made according to the Customer’s specific needs CG 50 Gamma is a self-regulating taping machine for gummed paper designed to tape cardboard boxes of different sizes. The box is manually introduced after the upper flaps are folded (closed) by the operator. The machine will automatically adapt to the box sizes and stick on the gummed paper above and below. TECHNICAL FEATURES • Automatic adjustment for different box sizes; • Manual insertion of the boxes after having closed the upper flaps; • Vertical and side auto-dimensioning with an electric control apparatus. It also allows, by means of a device, to keep the machine sized and to quickly seal amounts of boxes of the same size.; • Automatic and simultaneous box conveying and taping (upper and lower); • Boxes normally enter from the right (seepicture in colour); entry from the left is available as an option; • Adjustable humidification; • Gummed paper non-return ratchet device; • Lack of inertial forces when unwinding the paper tape from the reel thanks to the pivoting roller brake;
