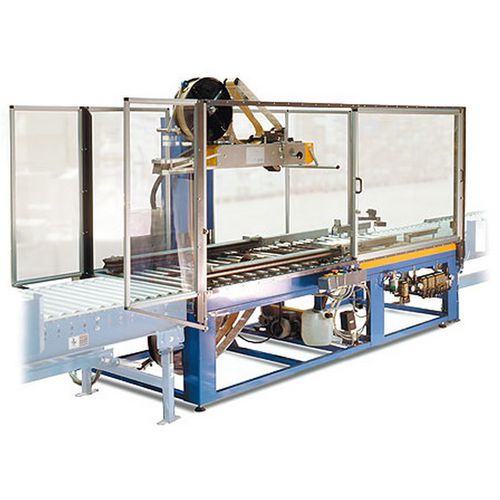

Multi-flap case sealer CG 60

hot-melt glueautomaticgummed paper

This automatic self-regulating taping machine for gummed paper has been designed to tape cardboard boxes of different sizes. These must arrive with the upper flaps already folded and kept in position by one or more metal staples, glue or other means. The spaced insertion of the boxes, the machines regulation to the size of the box inserted and the sticking on of the gummed paper above and below are fully automatic. TECHNICAL FEATURES • Automatic adjustment for different box sizes; • Automatic insertion of the boxes after having closed the upper flaps; • Automatic and simoultaneous box conveying and taping (upper and lower) with a motorized feeding and spacing group for boxes; • Vertical and side auto-dimensioning with an electric control apparatus; • Boxes normally enter from the right (seepicture in colour); entry from • the left is available as an option; • Adjustable humidification; • Gummed paper non-return ratchet device; • Lack of inertial forces when unwinding the paper tape from the reel thanks to the pivoting roller brake; • Pneumatically controlled, self-sharpening guillotine cutting group; • Rollers to press the gummed paper onto the boxes can be adjusted: pressure can be changed depending on the contents and/or thickness of the boxes; • Front and behind can be changed from 40 to 80mm according to paper width; • Final long brush for additional adhesion pressure on the upper horizontal section of gummed paper; • Water pump taking and drawing water from the humidifier groups, always maintaining the same level of humidification even when there is an intermittent power supply;
