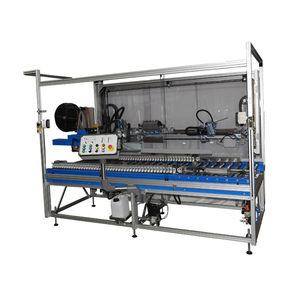

Multi-flap case sealer CG 100

adhesive tapeautomaticgummed paper

This taping machine for gummed paper has been designed for taping sets of boxes of equal size. The machine receives the filled boxes coming from one or more lines via idler or powered roller beds. The spaced insertion of the boxes, the closing of the upper flaps and the sticking on of the gummed paper above and below are fully automatic. Operator intervention is only required to adjust the machine to the box size. This very simple operation does not take more than 60 seconds. TECHNICAL FEATURES • Manual regulation for boxes of different sizes; • Automatic folding of upper flaps, box conveying and upper and lower sealing with a motorized introducing and spacing group for boxes; • Dynamic side-and-back-flap closing device with the possibility of closing boxes with orizontally opened flaps; • Boxes normally enter from the right (seepicture in colour); entry from the left is available as an option; • Adjustable humidification; • Gummed paper non-return ratchet device; • Lack of inertial forces when unwinding the paper tape from the reel thanks to the pivoting roller brake; • Pneumatically controlled, self-sharpening guillotine cutting group; • Rollers to press the gummed paper onto the boxes can be adjusted: pressure can be changed depending on the contents and/or thickness of the boxes; • Front and behind can be changed from 40 to 80mm according to paper width; • Final long brush for additional adhesion pressure on the upper horizontal section of gummed paper; • Water pump taking and drawing water from the humidifier groups, always maintaining the same level of humidification even when there is an intermittent power supply;
