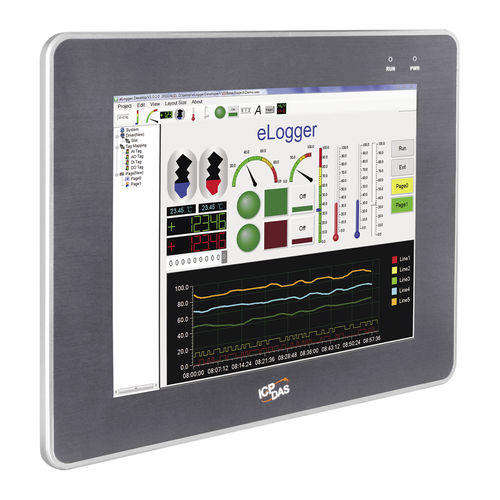

LCD panel PC iPPC series

15"12"17"

Features: LCD Size: 10.4", 12.1", 15" and 17” with Touch Panel E3827 (1.75 GHz) CPU WES7 (Windows Embedded Standard 7) Support eLogger HMI (free) NEMA 4/IP65 Compliant Front Panel Ultra-Rugged Construction and Reliable Design Operating Temperature：-10 °C ~ +60 °C The iPPC-4701-WES7, iPPC-5701-WES7, iPPC-6701-WES7 and iPPC-7701-WES7 are WES7 based Panel PC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel Atom E3827 CPU, TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded from a Compact Flash slot. Remote I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -20 ~ 60 °C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Since WES7 has the same Win32 API as Windows 7, most popular applications on desktop can run on WES7 based Panel PC. WES7 has the same Win32 API as Windows 7. Most popular applications on desktop can be run on WES7. It’s also compatible with rich Windows IDEs, such as Visual studio, Delphi, Borland C++ Builder, etc.
