Embedded PC iBPC series

Intel® Atom E3800 product familyIntel® Atom E3845Intel® Core™ i3-6100U

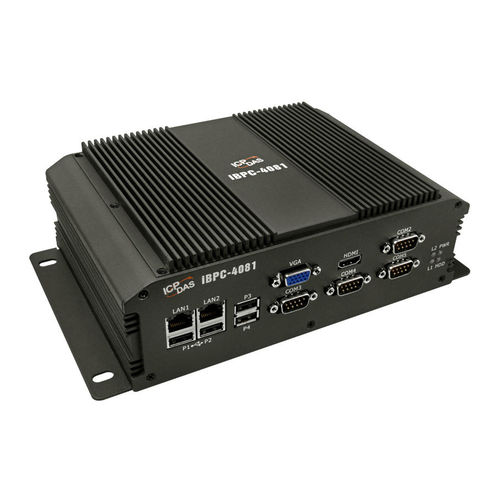

iBPC series is a fanless embedded box PC, wide operating temperature and wide range voltage capability, allow it run in the harsh environments. iBPC series comes with the same interfaces: four RS-232/422/485 ports, VGA, HMDI, Audio, dual Gigabit Ethernet LAN ports and four high-speed USB 2.0. And there are various CPU options: iBPC-4081 is with one Intel® ATOM Quad Core 1.91Ghz Processor E3845 (with 4GB on-board memory), iBPC-4041 is with one Intel® i3-6100U processor (with one DDR4 SO-DIMM slot). Two SMA type connector opening for antenna, optional I/O expansion board (XV-board), provides high protection I/O, +10 ~ 30 VDC power input connector, and one power switch. One 2.5" SATA HDD drive bay is also set up in the embedded computer to possess sufficient storage. Features . Powerful Hardware Design iBPC-4081: Intel® Atom E3845 CPU (with 4 GB on-board memory) iBPC-4041: Intel® i3-6100U CPU (with one DDR4 SO-DIMM slot) 2 × 10/100/1000M Ethernet and 4 × USB 2.0 port One 2.5” SATA drive bay and 1 CF socket Ultra-Rugged Construction and Reliable Design Supports VGA and HDMI dual display RS-232/422/485 port I/O Expansion Bus for XV-board One Mini PCI Express Card slot Operating Temperature: -25 ~ +70°C
