Infrared remote control IR-712-MTCP

with configurable buttonson/offindustrial

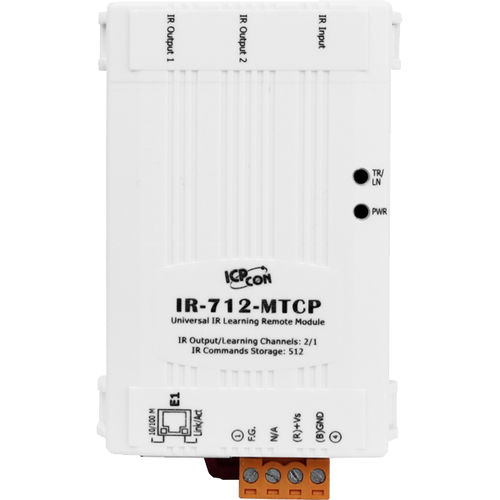

IR-712-MTCP is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712-MTCP supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied Ethernet interface with Modbus TCP/UDP protocol provides flexible expansion and control on the modules. Besides, the IR utility provides easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus client devices (e.g. PAC, PLC, PC… etc.), IR-712-MTCP is well-suited for smart home and building automation. Application Home Entertainment Devices Video Conferencing System Surveillance System e-Classroom service Lighting Scenario Control Home and Building Automation Features 2 IR output channels for controlling multiple devices 1 IR learning input IR command storage: 512 Supports IR carrier frequencies: 33、36、37、38、40 and 56 kHz. Supports Ethernet interface. Supports Modbus TCP/UDP protocol. Provides IR transmitting/learning and power indication LEDs. Built-in Watchdog. RoHS Compliance.
