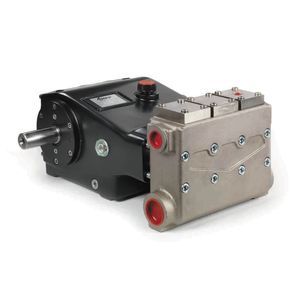

High-pressure hydraulic pump CLW series
plungerelectro-hydraulicnickel-plated brass

High-pressure hydraulic pump - CLW series - ID-tec B.V. - plunger / electro-hydraulic / nickel-plated brass
High-pressure hydraulic pump - CLW series - ID-tec B.V. - plunger / electro-hydraulic / nickel-plated brass
Add to favorites
Compare this product

Characteristics

Type
plunger
Operation
electro-hydraulic
Material
nickel-plated brass
Applications
for industrial applications
Other characteristics
high-pressure, horizontal
Pressure

Min.: 100 bar
(1,450 psi)

Max.: 200 bar
(2,901 psi)

Flow rate

Min.: 49 l/min
(12.94 us gal/min)

Max.: 100 l/min
(26.42 us gal/min)

Speed

Min.: 1,000 rpm
(6,283 rad.min-1)

Max.: 1,450 rpm
(9,111 rad.min-1)

Weight

33 kg
(72.75 lb)

Power

Min.: 16 kW
(21.75 hp)

Max.: 19 kW
(25.83 hp)

Description

The CLW high pressure pumps are available in 100 to 200 bar, 49 to 100 liters per minute and 16 to 19 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES CLW pumps are relatively low in pressure, but with a large displacement and available in various pump speeds from 1000 to 1450 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs. Features Splash lubrication Ceramic plungers Connection kit (optional) Pulse system (optional) Double shaft end (optional) Bell housing for hydraulic connection (optional) Seal kit max. 85 degrees (optional)
