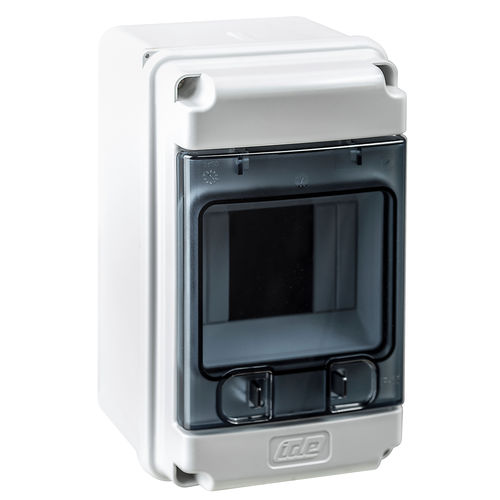

Power distribution electrical box CDN4GABSIK 08IP65
Add to favorites
Compare this product
Characteristics
- Material
- ABS
- Protection level
- IK 08, IP65
- Application
- power distribution
- Other characteristics
- with transparent cover
- Width
102 mm
(4 in)- Height
177 mm
(7 in)- Depth
105 mm
(4.13 in)
Description
Glow wire resistance
ABS - 650 ºC
Polycarbonate - 750 ºC
Ambient temperature range - -25 ºC / +40 ºC
Maximum operating voltage - 1000 V AC / 1500 V DC
Double insulation - Class II
ABS version.
Halogen-free plastic materials.
Base and frame: ABS RAL 7035 grey.
Transparent window: PC tinted window, with UV protection.
Polycarbonate version.
Halogen-free plastic materials.
Base and frame: PC RAL 7035 grey.
Transparent window: Recommended for outdoor use: UV protection according to the ISO 4892-2 standard, method A: 1000 h.
