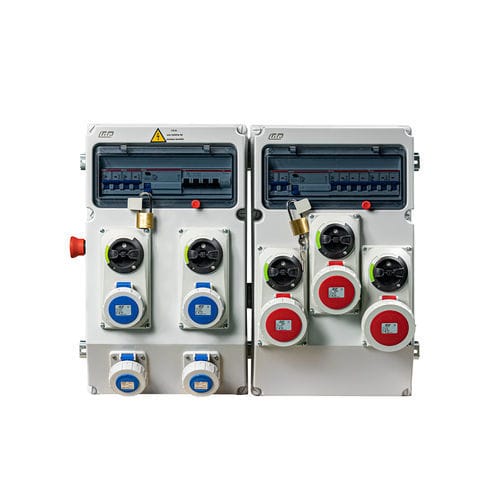

Equipped electrical enclosure COM40PR67/P

portableABSIP65

In Pryma enclosure - IP67 In Star enclosure - IP65 In interlocking and Schuko-type sockets - IP67 In the emergency push button - IP65 Resistance to impact - IK08 Glow wire resistance - In the enclosure - 650 ºC In power sockets - 960 ºC Ball pressure test - In the enclosure - 70 ºC In power sockets - 125 ºC Ambient temperature range - -25 ºC / +40 ºC Double insulation - Class II Models in Pryma IP67 enclosure: 26 - 39 - 52 and 56-module capacity with transparent window. Models in Star IP65 enclosure: 24 - 30 and 46-module capacity with transparent window. Any assembly combination is possible, with interlocking sockets assembled and wired, IP67 Schuko-type sockets, protections and emergency push-button. Single-phase 40A. Triple-phase 63A. Triple-phase 100A. Triple-phase 125A. Halogen-free plastic materials. Body: ABS RAL 7035. Transparent window: PC tinted window, with UV protection. They are supplied completely assembled according to the specifications of each reference, protected with shrinkwrapped plastic and placed in multiple cardboard packaging, depending on the number of units ordered.
