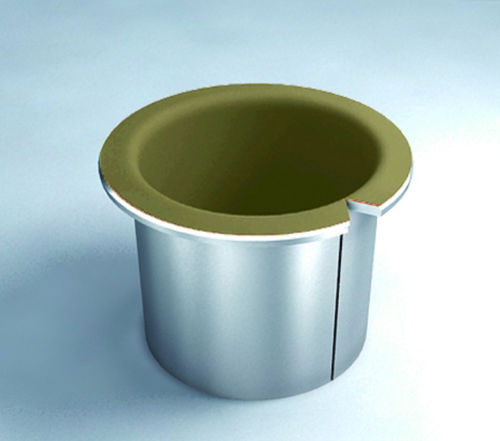

PTFE plain bearing IB016

sintered bronzestainless steelbronze

Material Stainless Steel ( DIN-X5CrNiL8 9|AISI 304|JIS-SUS304 ) + Bronze ( CuSn8Zn3 ) + PTFE + Fillers Introduction Dry bearings(stainless steel/red PTFE), made of stainless steel as base material, are produced by the process of being sintered bronze powder as medium layer and coated PTFE as lubrication layer. They are in nformity with the European RoHS environmental protection standards and widely used in the applications of automotive, bicycle, hydraulic transmission, shipping and chemical equipment due to the dvantages of lead free, low friction coefficient, good self-lubricating, good wear resistance and good corrosion resistance. Physical and Mechanical Properties max. operating temperature Tmax +280 ℃ min. operating temperature Tmin -200 ℃ max. sliding speed v-dry 2.5 m/s coefficient of friction f-dry 0.04-0.25 coefficient of friction f-oil lubricated 0.02-0.08 shaft surface finish Ra-dry 0.4±0.1 µm shaft hardness ＞200HB
