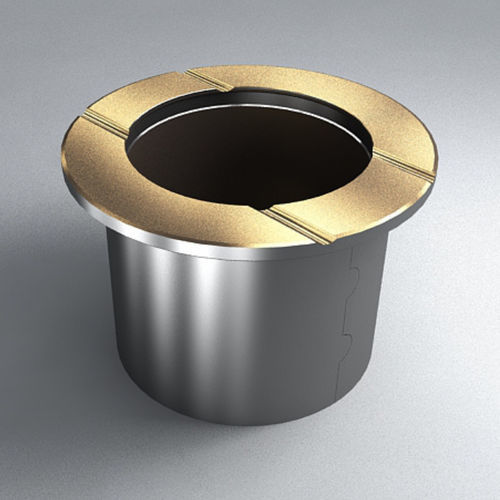

Cylindrical plain bearing IB037

steelcarbon steelbronze

Steel ( DIN-St12|ASTM-A366/A366M-97|JIS-SPCC ) + Bronze ( CuPb10Sn10|SAE-797|JIS-LBC3 ) + Bronze Hardness 70HB-100HB Introduction Bimetallic bearings(welding type), made of low carbon steel as base material, are produced by the process of being sintered tin bronze CuPb10Sn10 powder as layer and welded with washer. They are widely used in the applications of idle roller, truck roller and carrier roller due to the advantages of good wear resistance and good load capacity. Physical and Mechanical Properties max. operating temperature Tmax-greased +150 ℃ max. operating temperature Tmax-oil lubricated +250 ℃ min. operating temperature Tmin -40 ℃ max. static load Psta,max 300 N/mm max. dynamic load Pdyn,max 140 N/mm max. sliding speed v-greased 2.5 m/s max. PV factor-greased 2.8 N/mm2·m/s coefficient of friction f-greased 0.05-0.12 coefficient of friction f-oil lubricated 0.04-0.12 shaft surface finish Ra ≤0.8 µm shaft hardness-normal ＞200HB shaft hardness-for service life＞2000 hours ＞350HB
