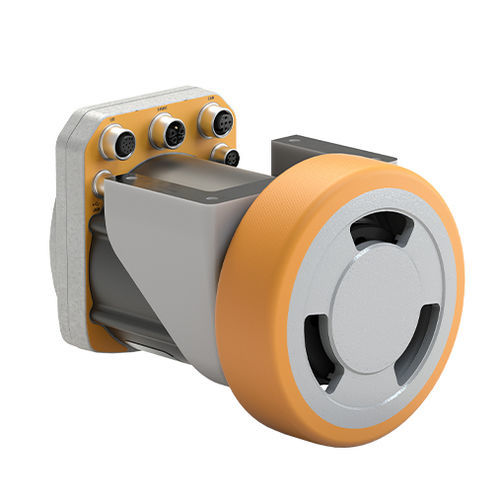

BLDC drive wheel SWD® 125for AGVIP66with integrated safety
Add to favorites
Compare this product
Characteristics
- Type
- BLDC
- Applications
- for AGV
- Protection level
- IP66
- Other characteristics
- with integrated safety
- Torque
13 Nm, 37 Nm
(9.59 ft.lb, 27.29 ft.lb)- Power
185 W, 200 W
(0.25 hp, 0.27 hp)- Load
250 kg
(551.2 lb)- Speed range
Min.: 0 km/h
(0 mph)Max.: 11 km/h
(6.84 mph)- Diameter
125 mm
(4.92 in)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Weight
6.2 kg, 6.5 kg, 7 kg, 7.3 kg
(13.67 lb, 14.33 lb, 15.43 lb, 16.09 lb)
Description
The new SWD® 125 wheel drive offers the exclusive safety features of the SWD® range in an extremely compact format, ideal for low and medium load logistics robots.
The combination of SWD® with safety scanners addresses the functional needs of mobile robots, in full compliance with global machine safety regulations.
The SWD® wheels are compatible with all safety laser scanners on the market, ensuring a SIL2/PLd level safety package.
Main features of the range:
• Up to 1.500 kg moved
• PU 80 sh.A flat profile
• Safe motion control and safety encoder
