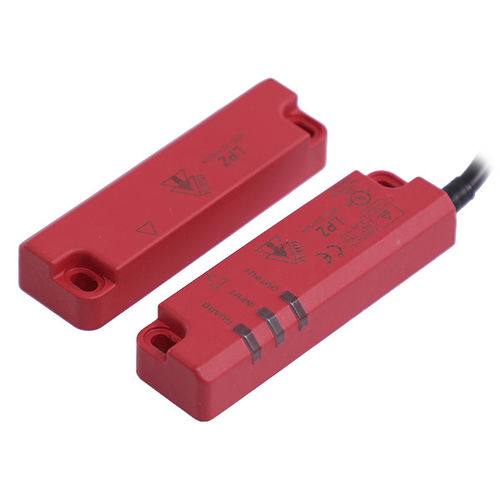

Multipole switch LPZ

IP67IP69KC-US UL

The LPZ is part of the new Z-Range intelligent series of safety products. They have been designed to incorporate high anti tamper RFID coding and maintain PLe safety rating, even when connected in series. The Z-Range technology means up to 30 LPZ can be connected in series, maintaining a high level of functional safety. Internal self-testing and OSSD outputs ensure faults are detected quickly and safely. Dual colour LEDs give clear indication of the guard and series connection states. They are suitable for hinged, sliding or removable guard applications and are rated to IP69K. Features: • Housing/Fixing: European Standard Fixing Centres • Material: High spec polyester, ideal for exposure to chemical cleaning agents • Contacts: 2 OSSD outputs and 1 N/O auxiliary output. • Sensing Distance: Wide 12mm operation • Ingress Protection: IP67 and IP69K • Operating Temperature: -25C to +80C • Connection: Pre-Wired or M12 Quick Connect Important: • Type M Master code – any actuator will operate any switch. • Type U Unique code – 32,000,000 codes
