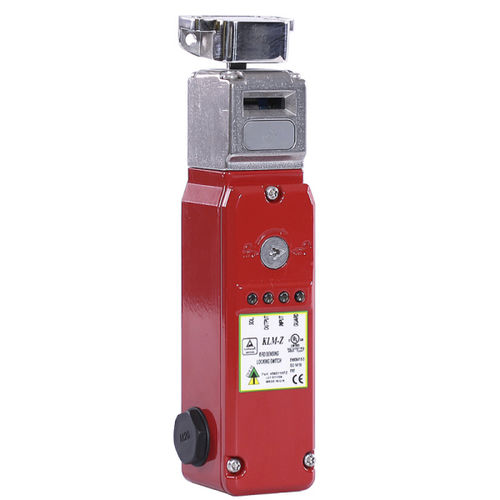

Multipole switch KLM-Z

harsh environmentsrobustIP67

The KLM-Z is part of the new Z-Range intelligent series of safety products. They have been designed to incorporate high anti tamper RFID coding and maintain PLe safety rating, even when connected in series (up to 30). The KLM-Z features IDEM’s anti-tamper tongue technology (cam system) but also incorporating uniquely coded RFID sensor technology all in one device. The Robust die cast body is designed for use in harsh environments where the switch is exposed. Features: • Material: Die Cast body / Stainless Steel Head • Actuation: Unique rotating head to offer both front and end actuation • Holding Force: 3000N • Coding: 32 million unique codes, high coding to ISO14119 • Safety Configuration: 2 OSSD Outputs and 2 Auxiliary Outputs (1 for guard state, 1 for lock state) • Ingress Protection: IP67 • Advanced diagnostic display via on switch LED indication • Choice between two actuators: HFZ = Flexible, AZ = Standard
