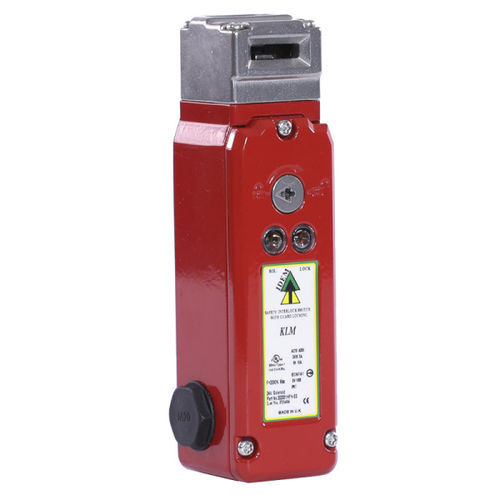

Multipole switch KLM

ruggedrobustIP67

The KLM are tongue operated safety interlocks housed in a robust, die cast body. The KLM features IDEM’s patented cam system with an anti-tamper mechanism, providing long term reliability, even in the most challenging environments. The IP67 enclosure protection is maintained by a double seal gasket and anti-rust, stainless steel internal screws. Choice between 4 actuator types: A = Standard, F = Flat, HF = Heavy Duty Flexible, HFH = Heavy Duty Flexible Hygienic Features: • Body Material: Die Cast • Head Material: Red Die Cast or 316 Stainless Steel • Holding Force: F1Max 3000N • Actuation: 360 Degrees rotating head for 8 entry positions • Solenoid Voltage: 24Vac, 110Vac or 230Vac • Ingress Protection: IP67 • Internal switch is selectable between power feed to LED2 or as a voltage free auxiliary circuit to indicate lock status
