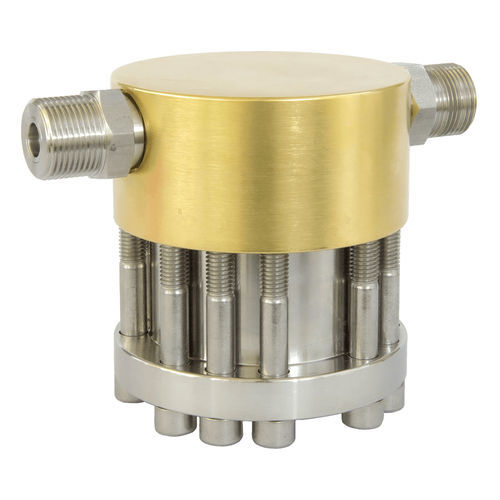

Liquid filter 110F1gascompressed aircartridge
Add to favorites
Compare this product
Characteristics
- Designed for
- liquid, gas, compressed air
- Filtration element
- cartridge
- Filtration method
- coalescing
- Applications
- high-pressure
- Material
- stainless steel, brass
- Operating pressure
220 bar, 400 bar
(3,190.83 psi, 5,801.51 psi)- Filtration size
5 µm, 50 µm
- Fluid temperature
Min.: -76 °F
(-60 °C)Max.: 608 °F
(320 °C)
Description
Available connections:
G3/4-M;
G1-M;
3/4”NPT-M;
1”NPT-M.
Other connections available on request.
The product complies with the directive 2014/68/EU (PED).
IN/OUT Connection - 3/4”-M | 1”-M (GAS/NPT)
Weight ~26 lb
Certifications PED 2014/68/UE | EAC TR CU 010
Seals Material NBR | EPDM | FPM | FVMQ | FFKM
Accesories - Wall mounting bracket
Spare Parts Kit - O-rings | filter cartridge
Catalogs
110F1
5 Pages
