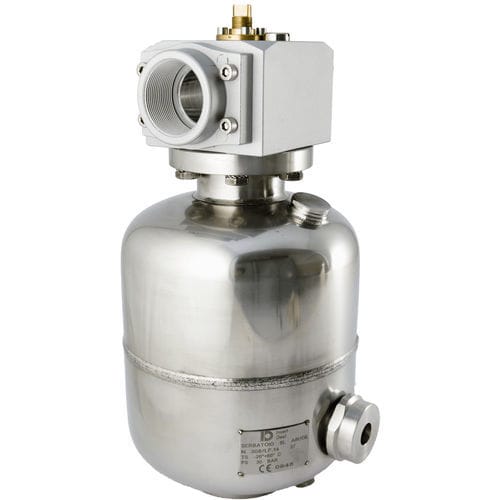

Compressed air lubricator 220L2

Inlet and outlet connections 1” 1/2 – F and 2” – F by flanges screwed to the body. Bowl capacities: 8 l / 24 l (270 US fl oz / 810 US fl oz). The lubricator add oil fog to the air stream that flows inside, is installed upstream of air operated tools and equipment. The oil flow is proportional to the air flow, by increasing the air flow the oil flow also increase maintaining the right proportion between air and oil. The product complies with the directive 97/23/CE PED. Available the EAC TP TC 032/2013 or EAC-EX TP TC 012/2011 versions for the Russian market. IN/OUT Connection 1”1/2-F | 2”-F Working Temperature - Standard -4°+140°F | Available on request from -76°F up to +608°F Oil Tank Capacity 8L | 24L Weight ~26,5 lb (8L) | ~33 lb (24L) Certifications PED 2014/68/UE Internals and Body Material Aluminum | Bowl in AISI 304 Seals Material - NBR | FPM | FVMQ | FFKM Spare Parts Kit - O-rings | assembled tap
