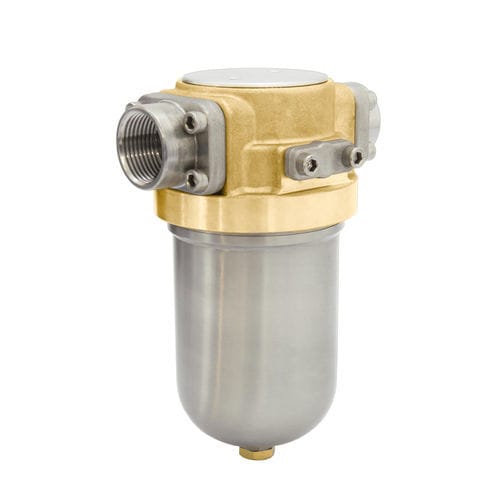

Liquid filter 110F2

gascompressed aircartridge

Inlet and outlet standard connections: 3/4”-F; 1”-F; Connection on request: 1”1/4-F; 1”1/2-F e versioni NPT made by flanges screwed to the body. Connections with EN or ASME flanges available on request. Compressed air condensation drain: SAI (automatic) SS (semiautomatic) SM (manual drain) CAP. Brand CE Ex II2GcIICTX, CE Ex II2DcIIICTX. For use in potentially explosive atmospheres zones: 1, 21, 2, 22 (not for mines and zone 0). The product complies with the directive 2014/68/EU PED. Available units composed of: Filter + Regulator + Lubricator. IN/OUT Connection 3/4”-F | 1”-F | 1”1/4”-F | 1”1/2-F (GAS/NPT) | UNI EN 1092-1 | ASME B16.5 Weight ~7,7 lb Pressure Gauge Connection - On request 1/4”-F | 1/8”-F (GAS / NPT) Seals Material EPDM | FPM | FVMQ | FFKM Accesories - Wall mounting bracket Spare Parts Kit - O-rings | filter cartridge
