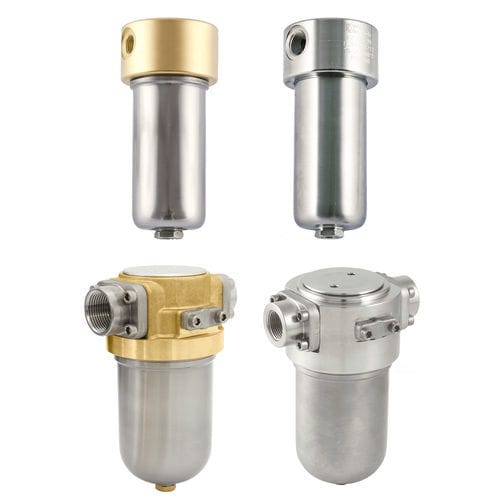

Gas filter FC2Scompressed aircartridgecoalescing
Add to favorites
Compare this product
Characteristics
- Designed for
- gas, compressed air
- Filtration element
- cartridge
- Filtration method
- coalescing
- Material
- stainless steel, brass
- Other characteristics
- ATEX, medium-pressure
- Operating pressure
16 bar, 30 bar, 50 bar
(232.06 psi, 435.113 psi, 725.189 psi)- Filtration size
0.01 µm
- Fluid temperature
Min.: -76 °F
(-60 °C)Max.: 608 °F
(320 °C)
Description
Connections:
1/4”-F;
3/8”-F;
1/2”-F;
3/4”-F;
1”-F;
1 ¼”-F;
1 ½”-F;
both GAS or NPT.
Connection with EN or ASME flanges available on request.
Filtration rate: coalescing (0.01 μm/99.99%).
Hexagonal cap (for inlet pressure greater than 30 bar).
Available the ATEX version.
Branding: CE ExII2GDcIICX.
For use in potentially explosive atmospheres zones: 1, 21, 2, 22 (not for use in mines and zone 0).
The product complies with the directive 97/23/CE (PED).
IN/OUT Connection - 1/4”-F | 3/8”-F | 1/2"-F | 3/4"-F | 1”-F (GAS/NPT)
Filtration Rate 0,01μm (99,99%)
Weight~ 2 lb FC2S 1/4”-F, 3/8”-F | ~ 3,7 lb FC2S 1/2”-F | ~ 8,8 lb FC2S 3/4”-F, 1”-F
Seals Material EPDM | FPM | FVMQ | FFKM
Accesories - Wall mounting bracket
Spare Parts Kit - O-rings | filter cartridge
