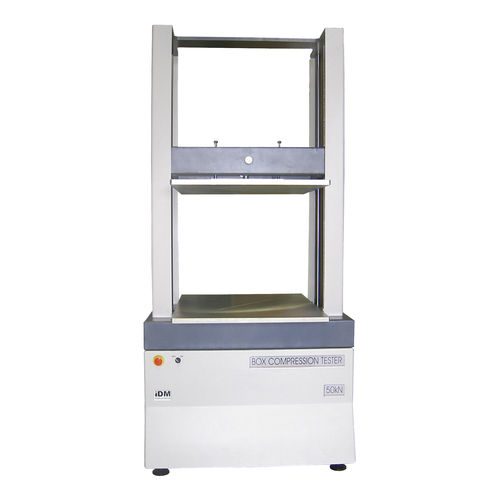

Compression testing device B0009

for cardboard boxes

Model B0009 is a floor-mounted machine designed to evaluate packages and material under compressive loads. One platen is supplied with the machine measuring 1000 x 800 x 25mm which can be fixed or floated, as well as a base platen with the same dimensions. The Box Compression Tester uses a servo electric system to apply a precise linear motion and force. Also available: B0010 Box Compression Tester - 50kN 1250 x 1250 x 25mm http://www.idminstruments.com.au/products/box-compression-tester-50kn B0011 Box Compression Tester - 100kN 1250 x 1250 x 25mm http://www.idminstruments.com.au/products/box-compression-tester-100kn Applications: • Box Compression • Stack Testing • Multi-box Compression Standards: • AS130-1-800s • ASTM D642 • ASTM D4169 • TAPPI T804 • ISO 12048:1994 Features: • Four precision load cells are used to measure the applied force • Precise linear transducer measures the test sample deflection • Strong A-frame construction. • Motor driven ball screws, for fast and accurate operation, reposition the crosshead assembly. • Maximum capacity: 50 kN • Force Resolution: 50.00 x 0.01 x kN • Force Accuracy: ± 1% F.S. • Maximum test area: D:1000mm x W:800mm x H:1200mm • Position Repeatability: 0.2 mm • Resolution: 2000.0 • Position measuring accuracy: 0.1 mm • Servo Electric • Variable Test Speed: 0.1- 250 mm/min • Speed accuracy: 0.5% F.S. • Crosshead Positioning: 500 mm/min • Platen size: 1000mm x 800mm x 25mm • Overall Height: 2312mm • Voltage Supply: 2 x 240V AC 10 A • Software: IDM's UTM software
