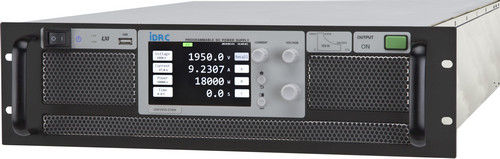

Programmable power supply DSP-WE seriesAC/DCadjustable3-phase
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- adjustable
- Network
- 3-phase
- Protection
- with short-circuit protection, with overcurrent protection, with overload protection, with overheating protection
- Connection
- with safety terminals
- Certifications
- CE
- Features
- 3U
- Applications
- emergency battery, for industrial applications, laboratory, for telecommunications equipment, for automation, for medical applications, for plasma cutting, workstation, electronic equipment, for medical applications, for electrical networks, for railway applications, for marine applications, emergency fuel cell
- Other characteristics
- programmable, safety, with power factor correction (PFC), digital, low-noise level, wide input range, high-power, high-voltage, high-performance
- Input voltage
Min.: 180 V
Max.: 460 V
- Output voltage
Min.: 80 V
Max.: 1,950 V
- Current
Min.: 27 A
Max.: 540 A
- Power
Min.: 5,000 W
Max.: 18,000 W
Description
Input & Output
- All Wide Range characteristics; AC mains 180~460V, DC output 0~80V/540A to 0~1500V/30A.
- Constant Voltage(CV) and Constant Current(CC).
- 3-phase input possible with all models including 5kW unit. Identical phase current keep the 3-phase AC mains balanced. Meets worldwide power distribution regulation.
- Output power 5kW ~ 18kW total 32 models.
- Built-in patented Synchronizing circuitry, easy to integrate 100 units to form a 1500kW power supply.
- Active power factor correction, PF>0.99(480V input).
- Excellent efficiency is nearly 96 %. (18kW models) (*2)
Electrical
- MHz switching frequency(15kW), extremely low output ripple and noise low. (*3)
- Multiple 32 bit ARM Based embedded system, fast boot time of 10 seconds or less.
- Use wide Band Gap power semiconductors such as SiC MOSFET SBD. Result in better performance, higher efficiency at lower temperature.
- Adjustable output voltage, current and power.
- CV. CC working priority setting.
- Provide True RMS current and True Watt readings.
- All models equip with auto-discharge circuit, discharge voltage to safe range within 10 sec. after output off.
- 18 bit DAC for Setting and 24 bit ADC for Measurement.
- Two kind of output mode; output directly by adjustment or after confirmation.
