Water pipe RENO 100 AND 100 BLUE
polyethylene (PE)transportsanitary

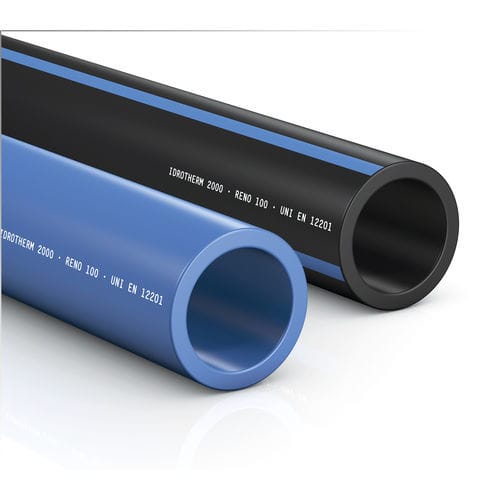

Water pipe - RENO 100 AND 100 BLUE - Idrotherm 2000 - polyethylene (PE) / transport / sanitary
Water pipe - RENO 100 AND 100 BLUE - Idrotherm 2000 - polyethylene (PE) / transport / sanitary
Water pipe - RENO 100 AND 100 BLUE - Idrotherm 2000 - polyethylene (PE) / transport / sanitary - image - 2
Add to favorites
Compare this product


Characteristics

Use
for water
Material
polyethylene (PE)
Applications
transport, sanitary
Other characteristics
standard, extruded
Inner diameter

Max.: 1,108.2 mm
(43.63 in)

Min.: 14 mm
(0.551 in)

Outer diameter

Max.: 1,200 mm
(47.244 in)

Min.: 20 mm
(0.787 in)

Pressure

6 bar, 10 bar, 12.5 bar, 16 bar, 25 bar
(87.023 psi, 145.038 psi, 181.297 psi, 232.06 psi, 362.594 psi)

Temperature

20 °C, 30 °C, 40 °C
(68 °F, 86 °F, 104 °F)

Description

these are produced with polyethylene PE100 (MRS 10 MPa) and have characteristics which conform to the standard EN 12201, whose field of application foresees the distribution of water pressure for human use, which includes transport before treatments; they meet the requirements foreseen by the international standard ISO 4427; they are black in colour with blue extruded lines and meet the national hygiene and sanitary regulatory guidelines (Ministerial Decree 21/3/73 and Ministerial Decree n. 174 of 6/4/04); they conform to the requirements of the standard EN 1622 for the organoleptic properties (taste and smell) of supplied water; they constitute the ideal solution for problems related to laying pipelines, contributing to the global reduction of installation and maintenance costs for underground networks whilst still maintaining the advantageous characteristics of polyethylene pipes such as: lightness, flexibility, simple installation. Conformity to standard requirements is continually assessed both via the advanced control systems active during production (ultrasound equipment) and monitoring if the finished products (physical-mechanical characteristics), as well as via the third part certification issued by international organisms.

Catalogs

No catalogs are available for this product.
