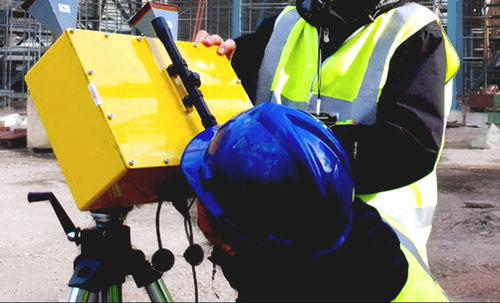

Ground radar IBIS-FS Plus

An advanced microwave interferometry based system for remote static and dynamic monitoring, IBIS-FS Plus inferometric radar is used on bridges and other structures including buildings, historical monuments and towers. An accelerometer version of IBIS-FS, this radar mitigates the effect of large external vibration sources on results. In static, the IBIS-FS Plus is ideal for: Structure load testing; Structure displacement and collapse hazards; Cultural heritage preservation. In dynamic, the IBIS-FS Plus is best used for: Structure resonance frequency measurements; Structural modal shape analysis. In either state, the IBIS-FS Plus features: Remote sensing: Real-time remote sensing at up to 1 km with no need for equipment to be installed on the monitored structure. Accurate measurements: Measures displacements of as little as 0.01mm @ 0.5km range. No standard instrument can achieve such accuracy. Ground vibration removal: Built-in accelerometer to cancel the self-induced vibrations transmitted to the radar from the ground. Sampling: Structural vibration sampling up to 200 Hz. Always operational: Operates day and night and in all weather conditions. IBIS-FS Plus is part of the IBIS family which provides trusted safety critical radar monitoring systems able to measure sub-millimeter displacement with the highest data quality. Meet the other products of the family: IBIS ArcSAR Lite / Performance; IBIS-FB; IBIS-FM EVO; IBIS.FS. Benefits of the IBIS-FS Plus include: Accurate measurements even when the system is installed in places with large ground vibrations; Increase structural health monitoring efficiency through the use of a non-invasive vibration monitoring technique
