Spiral gasket 6411SD30

roundgraphiteflange

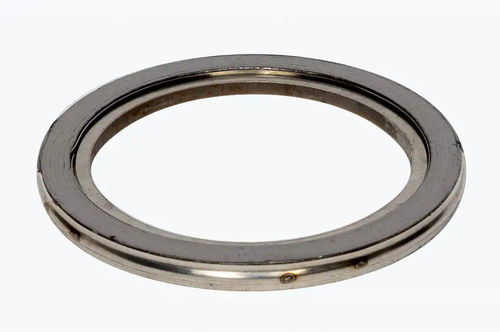

The Spiral Wound Gasket consists of a spirally wound, beaded metal strip made from stainless steel 1.4541. A graphite soft material strip [purity 98%C] protruding on both sides is inserted between the individual windings.The inner support ring [material: 1.4541] stabilizes the spiral on the inner diameter. This gasket type has no outer support and centering ring and is suitable for the use in male-female flange systems. Spiral Wound Gaskets are particularly suitable for applications with high operating pressures and critical operating conditions. Gasket characteristics DIN 2505 V K0×Kd [N/mm] - 50 × bd k1 [mm] - 1,4 × bd Gasket characteristics DIN 28090 бVO [N/mm²] - 300 бVU 0,1 [N/mm²] - 50 m (DIN 28090) - 1.4 бBO 300 °C [N/mm²] - 220 Gasket characteristics ASME m (ASME) - 3 Y [PSI] - 7300 Approvals and test reports TA Luft 2002 (VDI 24A0/2200) BAM oxygen BAM oxygen (liquid) WRAS Drinking water certificate HY Flange shapes Male-Female (form SR) - Apparatus, customized - With partition bars
