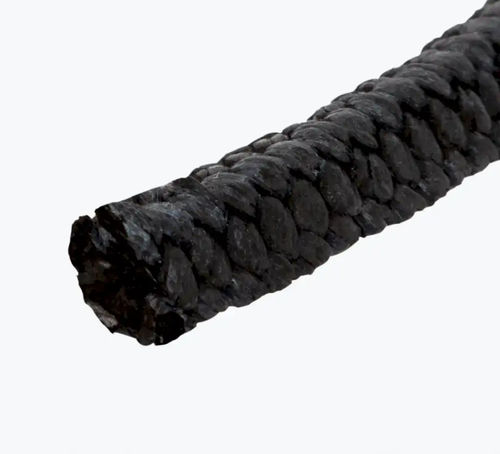

Carbon fiber braided packing 1375

chemical-resistanthigh resistance

Carbon fiber packing, with little lubricant addition, silicone-free Low friction co-efficient, very good dry run properties Especially suited for difficult applications as they can occur due to temperature, media and design. Density approx. (g/cm³) - 1.2 g/cm³ Material structure - Kohle Waterproofing - Graphit Lubricant - ja (silikonfrei) K-factor - 0.9 Steam - 500 °C Fields of application Impeller pump (Vg) - 25 m/s Impeller pump (p) - 20 bar Valves (Vg) - 2 m/s Valves (p) - 100 bar Forms of delivery Ready-to-install, compression-molded packing rings made to measure; as complete packing sets; sold by the meter in boxes; 1 kg - 3 - 7 mm vkt. 2 kg - 8 - 11 mm vkt. 3,5 kg - 12 - 14 mm vkt. 5 kg - 15 - 19 mm vkt. 10 kg - ab 20 mm vkt.
