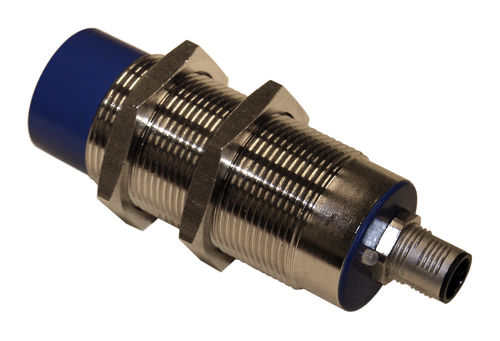

Compact RFID system Cylindrical Reader M30 UHF

fixedwith integrated antennaPROFIBUS

The BLUEBOX M30 UHF reader and writer is a fixed and compact all-in-one RFID reader for industrial automation processes. It has an power output of up to 27 dBm / 500 mW. The power setting can be set in 1 dBm steps starting from 10 dBm. In combination with the integrated circular antenna and a gain of -8 dBi, M30 Cylindrical Reader can achieve reading distances of up to 50 centimeters within industrial environments. The device comes with a RS232, RS485 or CANbus (SAE J1939 oder CANopen) interface and a power supply of 10 to 36 V. This RFID device allows a flexible and fast integration into many existing applications with its easy to install cylindrical M30 housing and standardized M12 connectors. iDTRONIC’s static BLUEBOX M30 UHF reader / writer supports the well known BLUEBOX SDK with demo and setup tools. The Windows based tools support all operating systems starting from XP up to Windows 10. Combined with C++, C# and a ASCII command protocol the software development kit offers an easy option to integrate this UHF device into any work environment. The Cylindrical Reader M30 is a stationary all-round RFID reader for automation processes in industry and supply chain applications. The cylindrical design is exclusive and unique on the market and was specially developed by iDTRONIC.
