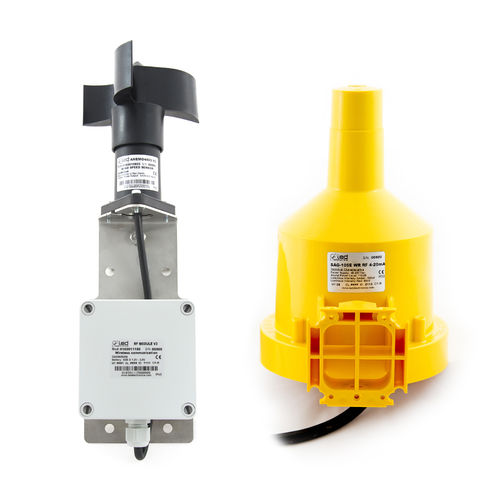

Cup anemometer SAG-105E RF NPN

IP55EMCwith alarm

Anemometric alarm for luffing cranes. Wind speed sensor with sound and light alarms. Designed in accordance with ITC MIE-AEM-2, from the elevation and maintenance apparatus regulations regarding tower cranes in construction works and other applications. 24 Vdc Power supply Plug & play RF Communication, according to 802.15.4 standard, 2.4 GHz Stainless steel bearings Possibility of connecting more than 1 display The device performs under the ITC MIE-AEM-2 guidelines. Intermittent pre-alarm activation at 50km/h and continuous alarm activation at 70km/h. The unit includes the possibility of reducing the alarm trigger values to increase safety. The pre-alarm intermittently activates the yellow beacon light and the siren. It is activated when the wind speed is between the chosen values, normally 50 km/h – 70 km/h. The continuous alarm activates the red beacon light and the siren when the wind speed exceeds the maximum value (normally 70km/h). The alarm latching can be configured so that it can only be deactivated by cutting off the power supply. The product consists of ANEMO4403 V3 + RF MODULE V3 SLB y SAG105E WR RF with the possibility of incorporating one or more WM44-P V3 or WM44-EVO11 V3 RF. All the devices communicate with each other through RF IEEE 802.15.4 2.4 GHz. SAG105E RF NPN is supplied with a 3x0.75 wire cable: Red: Power supply 15...24 Vdc Black: 0 V Yellow: NPN output (optional: PNP or 4-20 mA) ANEMO4403 V3 + RF MODULE V3 are supplied by D-type battery. It can be lithium or alkaline. Battery life up to 36 months (with ER14615 3,6V 19Ah)
