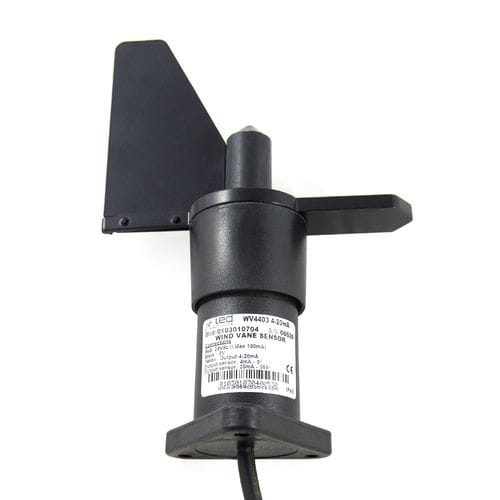

4-20 mA wind direction sensor WV4403

ModbusRS485radio

Wind direction sensor designed for different industries and sectors. WV4403 detects the vane position by using magnetic sensors avoiding wear and tear. It generates a 4-20mA analogue output depending on wind direction. High resistance to radio frequency interference (RFI) and electromagnetic interference (EMI) 4-20mA passive analogue output Magnetic measuring principle, with no wear and tear or dead zones Stainless steel bearings WV4403/5H25 has been designed to be used in industrial applications. Connected to devices such as dataloggers, PLCs, analogue signal displays (see our references WM44-EVO11, V10, V12, BS100/3 4-20mA), it measures the wind direction and/or activates predefined alarm values. Application examples: Irrigation control system, automation in greenhouses, solar trackers, ropeways at ski resorts, cranes, wind turbines, weather stations etc. All those applications that contribute to a greater control and greater security. Survival speed: 200 km/h of wind speed It gives a 4-20 mA analogue output which depends on the wind direction. (see graphic) The vane must be orientated north as shown in the orientation section. It calculates the average position in the last second. It has 16 positions of 22.5º each one. The wind vane must be fixed on a vertical position. Steel clamps that can be fixed to irregular parts measuring up to 63 x 45 mm. Magnets for flat ferromagnetic surfaces. This fixation system can support up to 90 kg
