Wheel measuring machine R2010 Labor

diametercontourgeometry

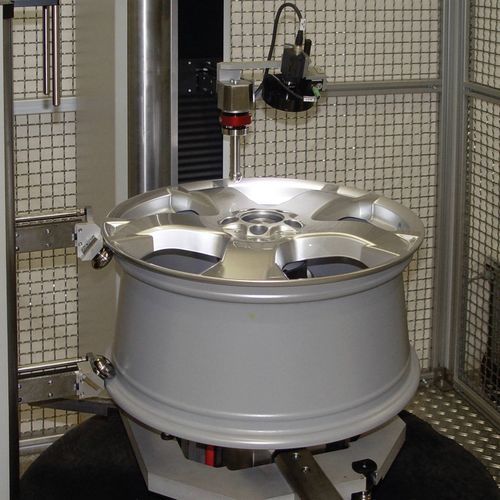

The patented R2010 wheel measuring machine was developed to measure geometric features at car wheels. It combines the function of measuring value recording, measuring process, calculation and illustration of the measured features in a single device. The wheel measuring machine R2010 in the design as a SPR system (static process regulation) for the measuring lab is suitable for wheels, rims and dishes. Mechanics, electronics and software are built in modules and configured individually according to customer specification. The individual components are set perfectly for each customer by integration of state-of-the-art technical developments from the areas of information technology, optics, laser and drive technology. The IEF linear modules used with innovative drive technology achieve the shortest measuring times at the highest precision and repeat accuracy. Calibration of the wheel measuring machine takes place by setting master. Features - for steel and alloy wheels - modular and compact construction - optimal accessibility - manual or automatic loading and unloading - fully automatic positioning of the measuring heads Excerpt features catalogue - radial runouts / axial runouts - 1st - 10th harmonious analysis (Fourier analysis) of the concentricity/axial runout - rim width - offset - diameter / circumference - centre hole diameter (option) - hump circumference / hump height - flange width / flange height - material thicknesses - bolt hole position and geometry - flatness of attachment face - panel characteristics
