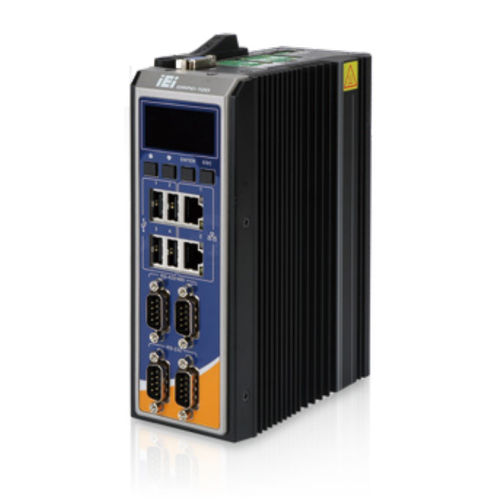

Embedded computer DRPC-100-CV

Intel Atom N2800Ethernetnetwork

This is supported by the Intel® Atom™ N2800 processor. It consumes very less power thanks to [N2800 + NM10 (6.5w +1.5w)]. It has Intel® GMA 3650 with 640 MHz and can run Blu-ray 2.0, DirectX 9, MPEG-2, as well as H.264, C-1 with 1080p decoding. It can support 1066 MHz DDR3 SO-DIMM up to 4 GB. It has one mSATA, one SATA DOM and one CompactFlash®. It has a wide range of DC power input (9V~28V). For additional functions it has one PCIe Mini expansion slot. It also supports two GbE, four USB 2.0, two RS-232, two RS-422/485, two CAN-bus and one 8-bit DIO. It has various interfaces such as Serial, CAN-bus and Digital I/O coming with isolation protection. It is fanless and can support -25ºC to 65ºC (with SSD) temperature. It has dual PCIe GbE LAN which enables fast and reliable internet. Lastly, it also features an OLED display which is programmable.
