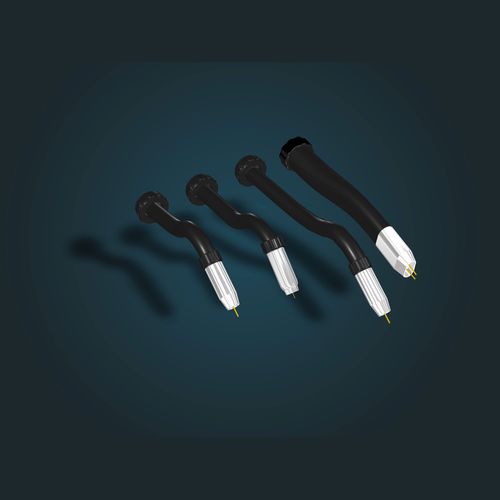

MIG-MAG welding torch

water-cooledrobotic

The welding torches are designed for use on robots for high-performance welding under harsh conditions. The slim design, together with the swan’s neck shape, permits the best accessibility even in narrow parts of the work piece. All welding torches provided as standard for igm robots have a particularly stable design with intensive water cooling and a quick-release coupling. They are also configured for pneumatic torch cleaning with compressed air at least 7 bar and for the use of the gas nozzle as a tactile sensor for program shifts. The arrangement of the contact tube in connection with the torch curvature ensures the forced contact of the welding wire. This ensures a uniform and constant current transition to the wire electrode under all conditions and wear conditions. Direct water cooling of the gas nozzle reduces the adhesion of weld spatter. The cooling water is routed through its own channels in the torch body up to the contact pipe, and from there through the nozzle stock to the gas nozzle.
