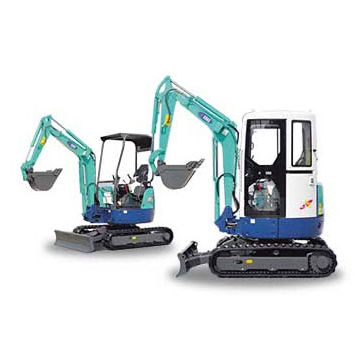

Mini excavator 20NX, 25NXcrawlerTier 4 - finalconstruction
Add to favorites
Compare this product
Characteristics
- Size
- mini
- Locomotion
- crawler
- Engine type
- Tier 4 - final
- Applications
- construction
- Operating weight
Min.: 1,980 kg
(4,365.2 lb)Max.: 2,550 kg
(5,621.8 lb)- Engine power
Min.: 14.2 kW
(19.31 hp)Max.: 15.7 kW
(21.35 hp)
Description
20NX 25NX
Performance
STD. Bucket capacity(ISO) 0.07m3 2.5ft3 0.08m3 2.8ft3
STD. Bucket width 450mm 17.7" 500mm 19.7"
Operating weight 1980kg 4365lbs 2550kg 5622lbs
Machine weight 1510kg 3439lbs 1970kg 4343lbs
Swing speed 9.8min-1 9.8rpm 10min-1 10rpm
Travel speed(Low/High) 2.3/4.5km/h 1.4/2.9mph 2.3/4.5km/h 1.5/2.8mph
Gradeability 30° 30°
Ground pressure 26kPa 3.8psi 27kPa 3.9psi
Max. bucket digging force 19.6kN 4406lbs 19.6kN 4406lbs
Engine
Model ISUZU 3LB1 ISUZU 3LB1
Rated output 14.2kW(19.3PS)/2000rpm 19.0HP/2000rpm 15.7kW(21.3PS)/2220rpm 21.1HP/2220rpm
Fuel tank capacity 33L 8.7gal 33L 8.7gal
Boom swing system
Type Boom offset with hydraulic cylinder Boom offset with hydraulic cylinder
Swing angle(L/R) 60°/ 80° 50°/ 90°
Catalogs
Mini Excavators 20NX
4 Pages
