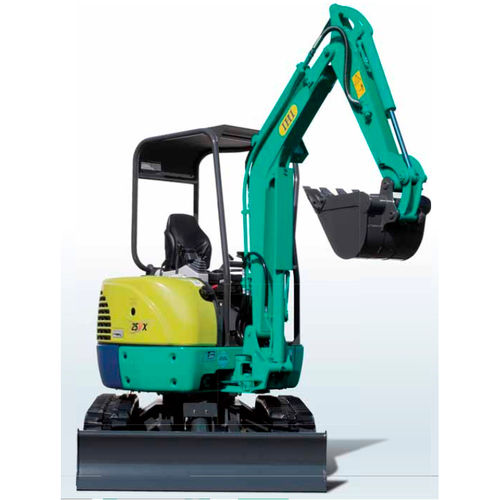

Mini excavator 25VXcrawlerTier 4 - finalconstruction
Add to favorites
Compare this product
Characteristics
- Size
- mini
- Locomotion
- crawler
- Engine type
- Tier 4 - final
- Applications
- construction
- Other characteristics
- compact
- Operating weight
Max.: 2,755 kg
(6,073.7 lb)Min.: 2,655 kg
(5,853.3 lb)- Engine power
18.4 kW
(25.02 hp)
Description
■ 25VX Specifications
Model 25VX
• Performance
Bucket capacity 0.08m3
Bucket width 500mm
Operating weight: 4post (Cabin) 2655kg (2755kg)
Transportation weight: 4post (Cabin) 2580kg (2680kg)
Swing speed 10mirr1
Travel speed (low/high) 2.3/4.5km/h
Gradeability 58% (30°)
Ground pressure 27kPa (0.28kgf/cm2)
Max.bucket digging force 19.6kN (2000kgf)
• Engine
Model YANMAR 3TNV76
Rated output 13.5kW(18.4PS)/2300min-1
Fuel tank capacity 35 L
• Boom swing system
Type Boom offset with hydraulic cylinder
Swing angle (L/R) 50° / 90°
Catalogs
25VX
1 Pages
