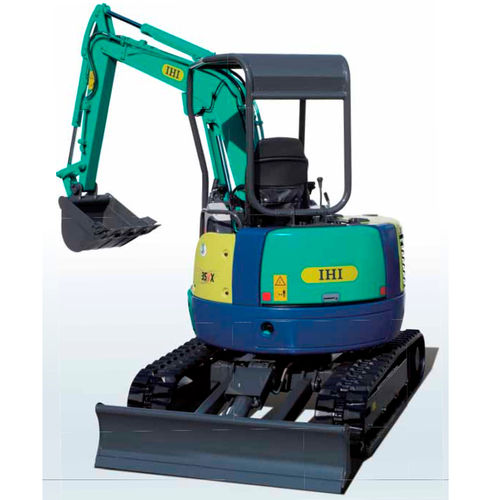

Mini excavator 35VX2crawlerTier 4 - finalconstruction
Add to favorites
Compare this product
Characteristics
- Size
- mini
- Locomotion
- crawler
- Engine type
- Tier 4 - final
- Applications
- construction
- Operating weight
Max.: 3,505 kg
(7,727.2 lb)Min.: 3,405 kg
(7,506.7 lb)- Engine power
20.3 kW
(27.6 hp)
Description
■ 35VX2 Specifications
Model 35VX2
• Performance
Bucket capacity 0.11m3
Bucket width 600mm
Operating weight: 4post (Cabin) 3405kg (3505kg)
Transportation weight: 4post (Cabin) 3330kg (3430kg)
Swing speed 8.8min-1
Travel speed (low/high) 2.8/4.8km/h
Gradeability 58% (30°)
Ground pressure 29kPa (029kgf/cm2)
Max.bucket digging force 26.5kN (2700kgf)
• Engine
Model YANMAR 3TNV88
Rated output 20.3kW(27.6PS)/2300min-1
Fuel tank capacity 35 L
• Boom swing system
Type Boom offset with hydraulic cylinder
Swing angle (L/R) 50° / 90°
• Hydraulic system
