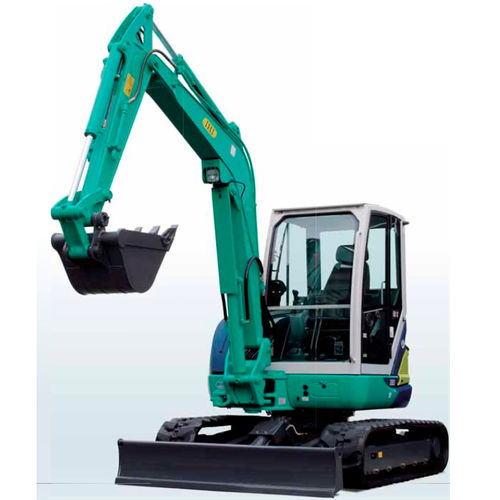

Mini excavator 50VXcrawlerTier 4 - finalconstruction
Add to favorites
Compare this product
Characteristics
- Size
- mini
- Locomotion
- crawler
- Engine type
- Tier 4 - final
- Applications
- construction
- Operating weight
Min.: 4,725 kg
(10,416.8 lb)Max.: 4,885 kg
(10,769.6 lb)- Engine power
27.3 kW
(37.12 hp)
Description
■ 50VX Specifications
Model 50 VX
• Performance
Bucket capacity 0.14m’
Bucket width 600mm
Operating weight: Cabin (4post) 4885kg (4725kg)
Transportation weight: Cabin (4post) 4810kg (4650kg)
Swing speed 9.0mh'
Travel speed (low/high) 2.6/4,8km/h
Gradeabfity 58% (30°)
Ground pressure 27kPa (0-28kgf/cnV)
Maxixjcket digging force 35.0kN (3570kgf)
• Engine
Model YANMAR 4TNV88
Rated output 27.3kW(37.lPS)/2300mn
Fuel tank capacity 65 L
• Boom swing system
Type Boom offset with hycfrauic cyinder
Catalogs
50VX
1 Pages
