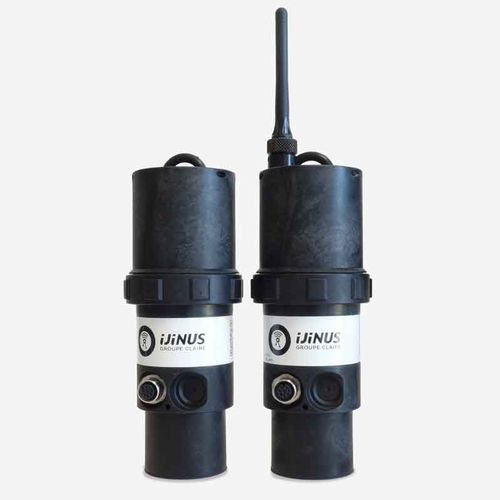

Water level sensor LNU06V4

ultrasonicfor wastewaterRS-485

Measuring range of 0,3 … 6m (0.98 – 20ft) Wireless setting with Rfid technology Communication : locally by radio + optional communication card for data remote monitoring. Two cards to choose from : LTE-M / NB-IoT Inputs : 1x voltage (5V…30V), 2x Contacts 100Hz, 1x Modbus Outputs : 1x power supply (internal battery or switch), 1x open drain, 1x Modbus Memory : 500 000 measures Lithium battery powered, low-power consumption Rugged, compact, sealing IP68 Measuring range - 0,3 … 6m (0.98 – 20ft) Accuracy - ± 0,2% of the measuring range The LNU06V4 are our new versions of level sensors, particularly suitable for liquid measurement in harsh environment. They integrates a logger, a long life battery and communication options making it fully autonomous. Easy to use and install, the setting is done safely by radio without need of activation. LNU06V4 is an all-in-one solution integrating Ultrasonic sensor, logger, communications and energy in the same device. It allows water height measurement by aerial ultrasonic, with automatic measurement cycle changes depending on thresholds, flow rate transformation through conversion tables, and many other innovative features. Sensors are equipped with connectors for coupling with an overflow detector, rain gauge, water quality probes or to control water sampler. Remote monitoring options available to send data by 2G, 3G or 4G. Applications : Storm overflow Water& Waste water Diagnostic of sewers network Combined Sewers Overflow Monitoring Discharges monitoring from waste water treatment plants Flow paced sampling with Ijinus sensors Flood warning and management Tank level monitoring
